Everything the part needs, in this workshop.

01 / CUTTING

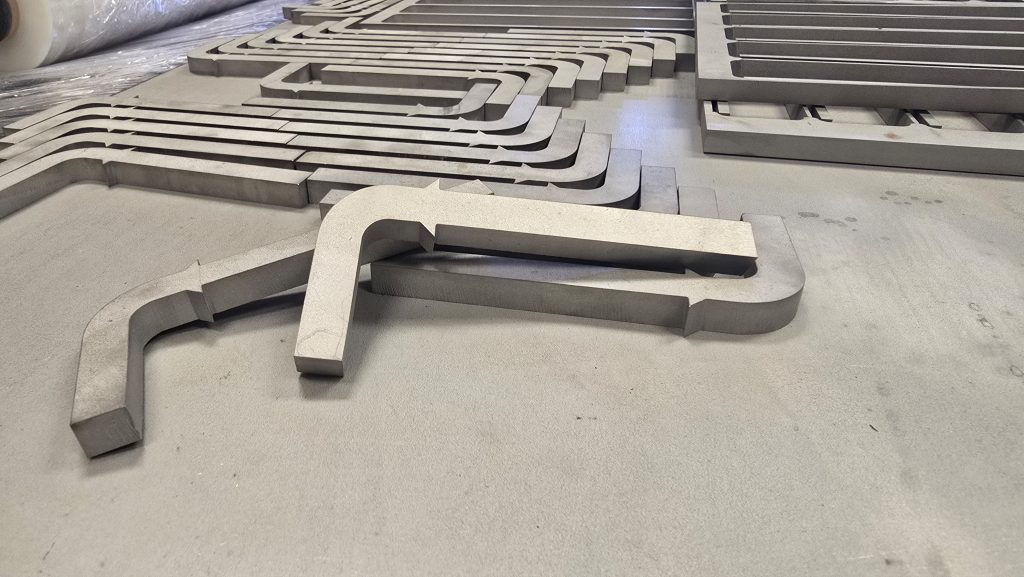

Abrasive waterjet

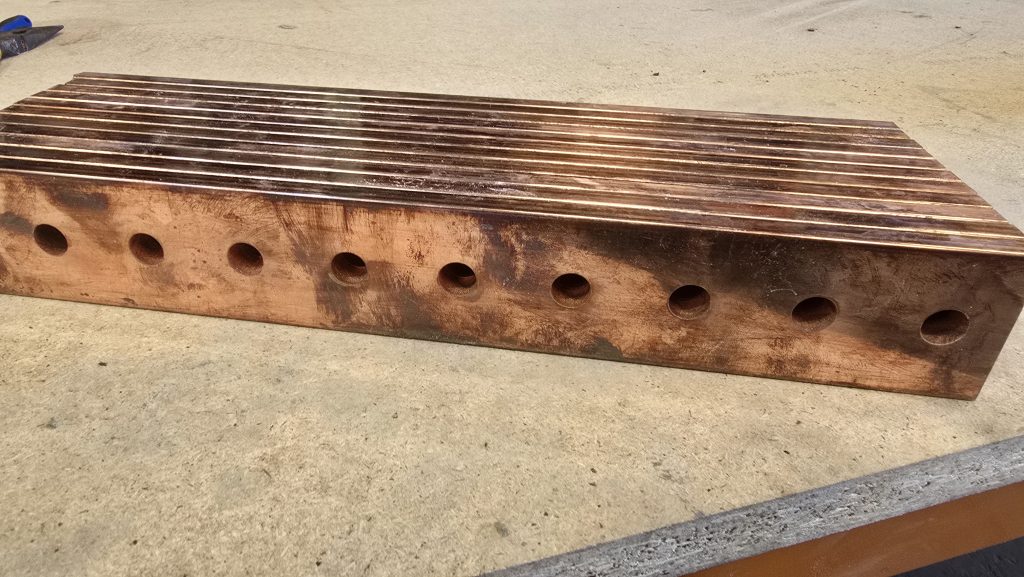

Wear plate, rubber, stone, glass, titanium, and thick metal. Tilt-A-Jet helps control taper on precision and heavy section work.

• Programmed travel 4064 × 2032 mm (length × width). Oversize plate and staged cuts are quoted when the sheet will not fit in one pass.
• Metals, engineering plastics, gasket materials, polyurethane, rubber, stone, and glass.

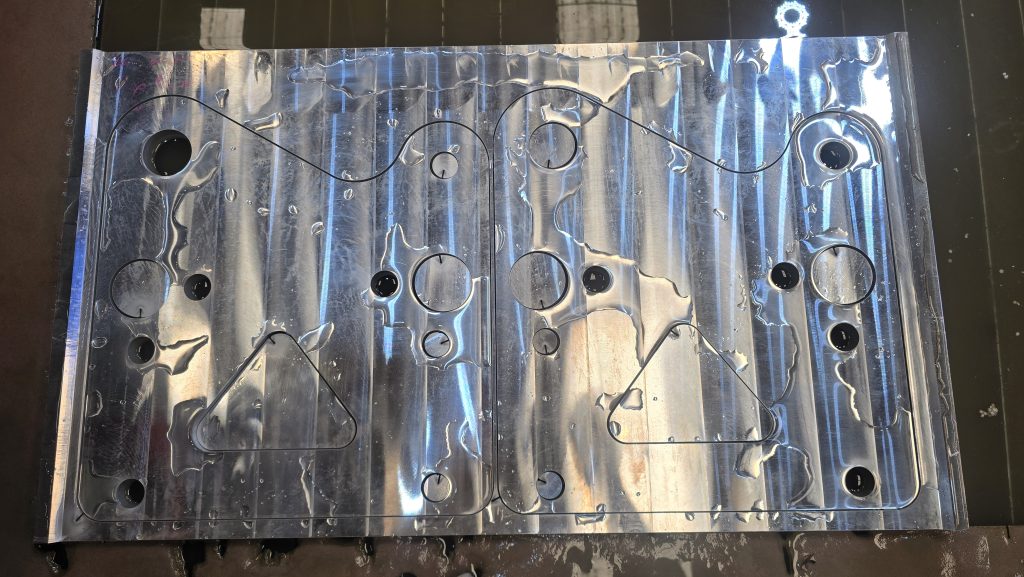

• Custom jigs and fixtures in-house for awkward nests, shafts, bars, and repeat work.
• Very thick material and unusual geometry: send the file and we will say if it fits the bed.

02 / MACHINING

CNC machining

Turning, milling, and wire EDM for the parts we cut and fabricate. Send the drawing and we confirm which machine it fits.

Turning

• Turn-mill, Ø650 × 3000 mm between centres, automatic steady rest and live tooling.
• 5-axis vertical turn-mill, Ø2000 mm. X, Y, Z travel 1600 × 1600 × 1400 mm.
• 12-station turret.

Milling

• 5-axis, travel 880 × 880 × 800 mm. Complex geometry that would otherwise need several setups can often be done in one hit.
• 4-axis, travel 1500 × 660 × 660 mm, with a 15″ chuck on the A-axis.

EDM

• Travel XYZ-UV 550 × 370 × 310 mm. 5-axis cutting head, 60°.

03 / FABRICATION

Welded fabrication

Cut components welded and dressed in the workshop: frames, brackets, chute work, and assemblies built from our own profiled parts.

• Fit-up from parts we nested, so mismatches are caught before welding starts.
• Quoted from your drawing or a sample part. The work stays in the shop.

04 / DRAFTING

Drafting & remakes

No drawing? Bring the worn part or a sketch. We redraw it so we can remake the part in this workshop.

• Drawings we create stay with us. We are not obliged to hand the file over.
• We remake parts here. We do not provide engineering sign-off.
